Ductless AC – Multi Zone



  • Low Ambient: Systems are capable of producing comfort heating to ambient outdoor temperatures as low as -13°F.
  • WIFI: (field optional with additional WIFI kit) Control your indoor unit using your smart phone mobile device.
  • Manual Switch: Power unit ON/OFF using manual switch button located at the evaporator.
  • Centralized Control: Control up to 64 units using one wired central control. Front Desk Control (hotel application) overrides remote control at the evaporator.
  • Interactive Display:
    • Display shows error codes based on system failure.
    • Display also alerts when unit goes into auto defrost.
  • Bypass Mode: Unit will continue to operate if a non-critical component fails, such as a sensor.
  • Self-Diagnosis: unit will shut down and go into protection if it detects abnormalities. The display will show an error code depending on the type of protection the unit is in.
  • 2-Way Draining: Option to place drain hose on left or right hand side of evaporator makes for flexible installation design (only for high wall mount and floor ceiling).
  • 3 Directional Airflow: Air flow is directed so that it reaches more surface area including the corners of the room being conditioned.
  • Refrigerant Leak Detection Error Code: Error code is displayed at the indoor unit if there is a leak detected in the system.
  • Mute Operation: Silence beep from remote control.
  • Follow Me Function: Remote control has a sensor built in. In this mode, the unit will take the temperature at the remote control instead of at the evaporator for the air return (room ambient) temperature.

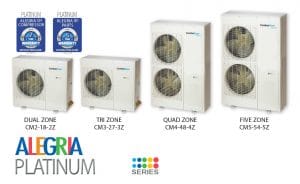

  • Connect up to 5 zones
  • Individual Zone Control
  • High Efficiency Inverter Technology

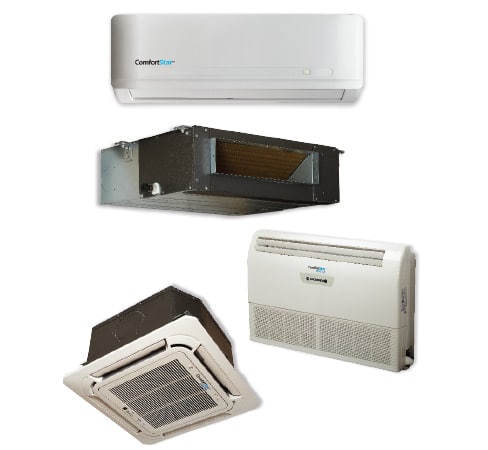

  • Mix & Match 4 Different Indoor Units. Available Indoor Units: High Wall Mount, Cassette, Floor Ceiling and Fan Coil.
